600A Bus Bar Power Distribution Block 4 x 3/8" (M10) Terminal Studs 48V DC Positive & Ground Busbar Terminal Block wtih Cover for Marine Automotive RV Boat(Black & Red)
Product details
| Management number | 215151344 | Release Date | 2026/04/12 | List Price | $32.00 | Model Number | 215151344 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Dimensions: The bus bar is measured (L x W x H): 4.02“x 1.97 ”x 2.67“ (102x50x68 mm), surface screw fixed installation, four mounting holes make this terminal block easier to be mounted in any orientation
- Terminals: Bus bar 12v includes - M10 (3/8") terminal studs x 4, two power bus bars in the package - one positive bus bar and one ground bus bar
- Voltage & Current: Max voltage: 300V AC, 48V DC; Max continuous amperage: 600 A DC; This battery distribution block will be suitable for both AC and DC systems
- High Quality: Bus Material: The battery distribution block is made of Tin-plated copper, which has good electric conduct performance and sturdy rust-resistant; The base is made of flame-retardant polycarbonate(PC) base reinforced to protect your safety, ensures great mechanical strength and durability

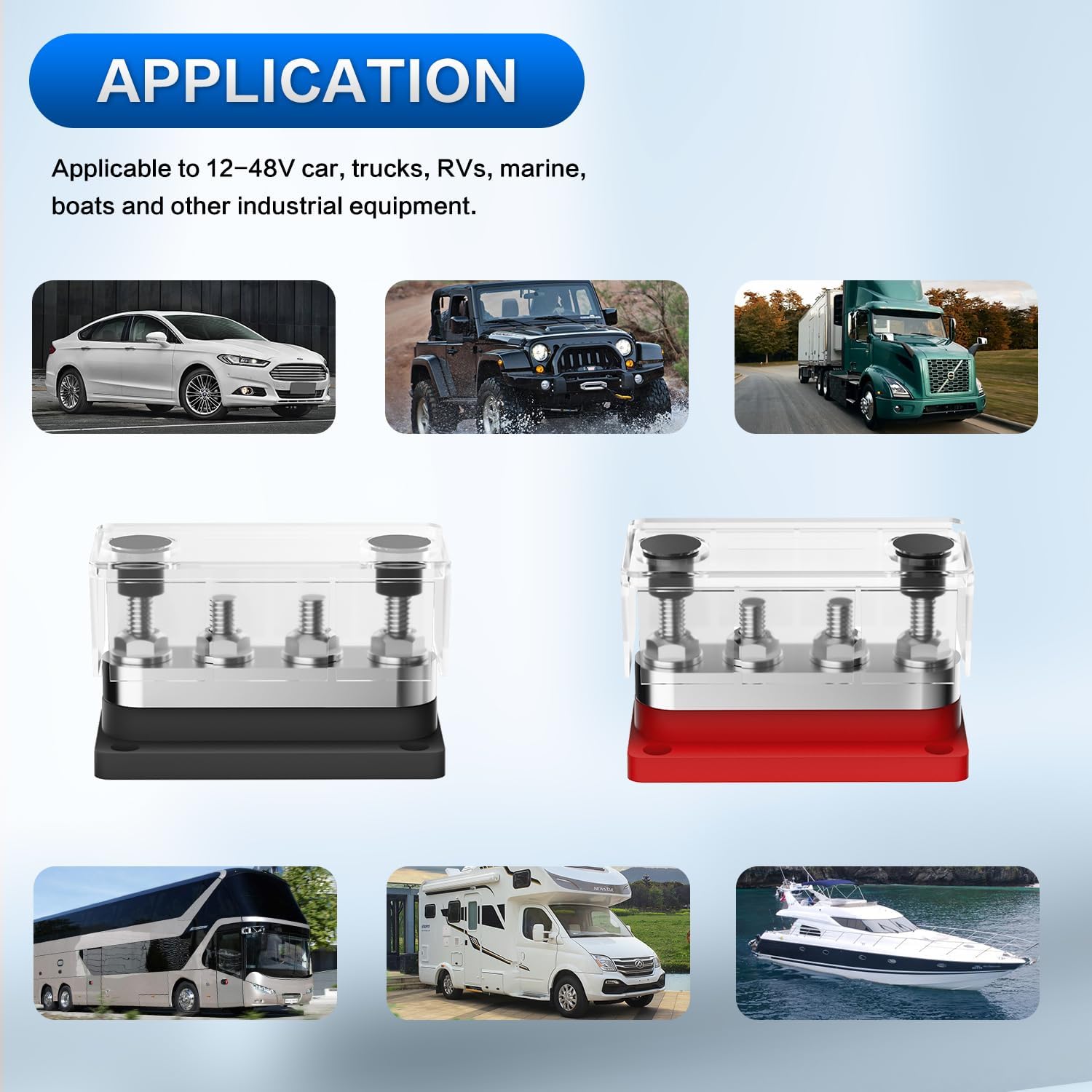

- Widely Used: The Junction block is widely used in12 V-48 V auto marine, boats, Trailers, trucks, RVs and so on
| Color | Black & Red 600A - 4 x 3/8" ( M10) Studs |
|---|---|
| Model | US4-AOA4713CRB-M10 |
| Voltage | 48 Volts (DC) |
| Brand Name | jamgoer |
| Part Number | US4-AOA4713CRB-M10 |
| Manufacturer | jamgoer |
| Material Type | Nylon, Polycarbonate (PC) |
| Mounting Type | surface |
| Connector Type | Screw |
| Current Rating | 600 Amps |
| Number Of Poles | 4 |
| Centerline Length | 4.02 Inches |
| Number Of Contacts | 4 |
| Number of Positions | 4 |
| Item Dimensions W x H | 4.02"W x 2.67"H |
